Intent Drift Detector

GitHub

An AI-powered agent that detects configuration drift between intended state and actual running state of network devices. Supports two platforms:

  1. ONES Fabric Manager (onesfm) - Aviz Networks' fabric management platform
  2. Cisco Nexus Dashboard Fabric Controller (NDFC) - Cisco's data center fabric controller

Overview

In production networks, operators may: - Push out-of-band configs (manual CLI changes) - Experience partial config failures during rollout - Have drift introduced by automation bugs

This agent automates the detection of such drift by: 1. Fetching intended configuration from GitHub URL (user-provided YAML) 2. Fetching live running configuration from devices (ONES FM or NDFC) 3. Comparing intended vs actual state 4. Generating detailed drift reports with severity levels

Supported Platforms

ONES Fabric Manager (onesfm)

ONES FM exposes tools via its MCP server for fetching device configurations:

Tool Description
fetch_running_config Fetch current running config from a device by IP

Workflow: User provides GitHub URL with intent → Agent fetches running configs from devices → Compares and reports drift.

Nexus Dashboard Fabric Controller (NDFC)

NDFC provides REST APIs for fabric management:

Tool Description
login_to_ndfc Authenticate with Nexus Dashboard
get_fabric_switches Get switches in a fabric
get_all_interfaces Get interface configurations
get_fabric_vrfs Get VRF definitions
get_fabric_networks Get VXLAN network definitions
get_portchannels Get port-channel configurations
get_switch_policies Get policies applied to switches
get_complete_fabric_state Get all fabric data in one call

Workflow: User provides GitHub URL with intent → Agent fetches running state from NDFC → Compares and reports drift.

Intent Management Tools (Common to Both Platforms)

Tool Description
fetch_intent_from_github Fetch intent YAML file from a GitHub URL
get_sample_intent_template Get a sample intent template for users to customize
parse_intent_yaml Parse intent YAML content
compare_intent_vs_running Compare and detect configuration drifts
generate_drift_report_markdown Generate formatted Markdown report

Project Structure

intent_drift_detector/
├── ncp.toml              # Project configuration
├── requirements.txt      # Python dependencies
├── apt-requirements.txt  # System dependencies (optional)
├── agents/
│   └── main_agent.py     # Main agent with platform tools
├── tools/
│   ├── __init__.py       # Tool exports & MCP server config
│   ├── ndfc_tools.py     # NDFC API integration
│   └── ones_tools.py     # ONES FM MCP integration
├── samples/
    └── sample_intent.yaml # Sample intent file template

Architecture

┌─────────────────────────────────────────────────────────────┐
│                   Intent Drift Detector                     │
├─────────────────────────────────────────────────────────────┤
│                                                             │
│  ┌──────────────────────────────────────────────────────┐   │
│  │           Intent Source: GitHub URL                  │   │
│  │  • fetch_intent_from_github                          │   │
│  │  • get_sample_intent_template                        │   │
│  └──────────────────────────────────────────────────────┘   │
│                           ↓                                 │
│  ┌─────────────────────┐     ┌─────────────────────────┐    │
│  │  ONES Fabric Manager│     │  Nexus Dashboard (NDFC) │    │
│  │      (onesfm)       │     │                         │    │
│  ├─────────────────────┤     ├─────────────────────────┤    │
│  │ MCP Server Tools:   │     │ REST API Tools:         │    │
│  │ • fetch_running_    │     │ • login_to_ndfc         │    │
│  │   config            │     │ • get_fabric_switches   │    │
│  │                     │     │ • get_all_interfaces    │    │
│  │                     │     │ • get_fabric_vrfs       │    │
│  │                     │     │ • get_complete_fabric_  │    │
│  └─────────────────────┘     │   state                 │    │
│                              └─────────────────────────┘    │
│                           ↓                                 │
│  ┌──────────────────────────────────────────────────────┐   │
│  │            Drift Detection & Reporting               │   │
│  │  • parse_intent_yaml                                 │   │
│  │  • compare_intent_vs_running                         │   │
│  │  • generate_drift_report_markdown                    │   │
│  └──────────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────────┘

Features

Drift Detection Tools (Common)

Tool Description
parse_intent_yaml Parse user-provided intent YAML
compare_intent_vs_running Compare and detect configuration drifts
generate_drift_report_markdown Generate formatted Markdown report

Drift Categories

  • 🔴 Critical: Service-affecting issues (admin state, IP addresses)
  • 🟠 Major: Potential issues (MTU mismatch, mode mismatch)
  • 🟡 Minor: Cosmetic differences (descriptions)

Intent YAML Format

Create an intent file defining your desired configuration:

intent:
  name: "Production Fabric Intent"
  version: "1.0"

fabric:
  name: "NCP-Eng"

devices:
  - hostname: "leaf-01"
    role: "leaf"
    management_ip: "10.4.6.21"
    nxos_version: "9.3(9)"

interfaces:
  - device: "leaf-01"
    name: "Ethernet1/1"
    admin_state: "up"
    mtu: 9216
    mode: "trunk"
    allowed_vlans: "100-200"

  - device: "leaf-01"
    name: "Loopback0"
    ip_address: "10.2.0.1/32"

port_channels:
  - device: "leaf-01"
    name: "port-channel10"
    mode: "trunk"
    members: ["Ethernet1/10", "Ethernet1/11"]

vrfs:
  - name: "PROD_VRF"
    vni: 50001
    devices: ["leaf-01", "leaf-02"]

networks:
  - name: "PROD_NET_100"
    vni: 30100
    vlan: 100
    vrf: "PROD_VRF"
    gateway: "10.100.1.1/24"

See samples/sample_intent.yaml for a complete example.

Quick Start

1. Authenticate with Platform

ncp authenticate

2. Validate Project

ncp validate .

3. Package Agent

ncp package .

4. Deploy Agent

# First deployment
ncp deploy intent_drift_detector.ncp

# Update existing agent
ncp deploy intent_drift_detector.ncp --update

5. Test in Playground

ncp playground --agent intent_drift_detector

Usage Examples

Getting Started with Intent Files

Get a sample intent template:

I need a sample intent file to get started. Can you give me a template?

After customizing, upload to GitHub and run drift detection.

ONES Fabric Manager Examples

Check drift with GitHub intent file:

Check for configuration drift in my ONES-managed fabric.
My intent file is at: https://github.com/myorg/network-intents/blob/main/prod-fabric-intent.yaml
Device IPs: 10.4.6.21, 10.4.6.22

Check specific device:

Fetch the running config from device 10.4.6.21 and compare it
against my intent file at: https://github.com/myorg/intents/blob/main/leaf01.yaml

NDFC Examples

Full drift detection workflow with GitHub intent:

I want to check if my NDFC fabric matches my intended configuration.
NDFC host: 10.4.4.184
Username: admin
Password: mypassword
Fabric: NCP-Eng
Intent file: https://github.com/myorg/network-intents/blob/main/ncp-eng-intent.yaml

Login to NDFC:

Login to NDFC at 10.4.4.184 with username admin and password mypassword

Get fabric inventory:

Show me all switches in the NCP-Eng fabric

Specific checks:

Get all interfaces for switch with serial FOC2020R1E7


Show me the VRFs configured in fabric NCP-Eng

Here is the yaml intent: https://github.com/dorebabu/golden/blob/main/intent.yml, go ahead and find the drift now in NCP-Eng fabric managed by Nexus dashboard
``

### Sample Drift Report Output

```markdown
**✅ Intent‑Drift Detection – NCP‑Eng Fabric (NDFC)**
*Controller:* **10.4.4.184** *User:* **admin / Aviz@123** *Intent file:* `https://raw.githubusercontent.com/dorebabu/golden/main/intent.yml`

---

## 📊 Overall Compliance
| Category | Items Checked | Matching | Mismatched | Compliance |
|----------|---------------|----------|------------|------------|
| Devices (hostname, role, model, NX‑OS) | 4 | 4 | 0 | **100 %** |
| Interfaces (admin state, MTU, mode, VLANs, IP, description) | 12 | 4 | 8 | **33 %** |
| Port‑channels | 1 | 0 | 1 | **0 %** |
| VRFs | 2 | 0 | 2 | **0 %** |
| VXLAN Networks | 2 | 0 | 2 | **0 %** |
| **Overall compliance** | – | – | – | **≈ 19 %** |

> The fabric is **far from the intended state** – most mismatches are **critical**.

---

## 🔎 Detailed Findings

### 1. Devices
All four devices (2 spines, 2 leafs) are present and match the intent (hostname, role, model, NX‑OS version). ✅

### 2. Interfaces

| Device | Interface | Intended | Running | Drift |
|--------|-----------|----------|---------|-------|
| **leaf01** | **mgmt0** | up, MTU 1500, IP 10.4.6.21/24, VRF management | up, MTU 1500, IP 10.4.6.21/24, VRF management | ✅ |
| **leaf01** | **Loopback0** | up, IP 3.3.3.3/32, desc “Router ID” | up, IP 3.3.3.3/32, *no description* | **Minor** – missing description |
| **leaf01** | **Ethernet1/1** | up, MTU 9216, *trunk*, VLANs 100‑1200, native 1, desc “Uplink to Spine” | up, MTU 1500, *routed*, IP 20.20.20.5/31, no VLANs/desc | **Critical** – wrong mode, missing VLANs, unexpected IP |
| **leaf01** | **Ethernet1/2** | up, MTU 9200, *access*, access‑vlan 101, desc “Server port” | up, MTU 1500, *routed*, IP 20.20.20.1/31, no VLAN/desc | **Critical** – wrong mode, missing VLAN, unexpected IP |
| **leaf02** | **mgmt0** | up, MTU 1500, IP 10.4.6.22/24, VRF management | up, MTU 1500, IP 10.4.6.22/24, VRF management | ✅ |
| **leaf02** | **Loopback0** | up, IP 4.4.4.4/32, desc “Router ID” | up, IP 4.4.4.4/32, *no description* | **Minor** – missing description |
| **leaf02** | **Ethernet1/1** | *Not defined* | up, MTU 1500, *routed*, IP 20.20.20.7/31 | **Extra** – present but not intended |
| **leaf02** | **Ethernet1/2** | *Not defined* | up, MTU 1500, *routed*, IP 20.20.20.3/31 | **Extra** – present but not intended |

*All other Ethernet ports (1/3‑1/52) are down and not part of the intent – acceptable.*

### 3. Port‑Channel

| Port‑Channel | Intended | Running | Drift |
|--------------|----------|---------|-------|
| **port‑channel10** (leaf01) | up, *trunk*, allowed 100‑1200, members Ethernet1/10 & Ethernet1/11, desc “VPC to Server” | **Not present** on any device | **Critical** – missing port‑channel and member interfaces |

### 4. VRFs

| VRF | Intended | Running | Drift |
|-----|----------|---------|-------|
| **PROD_VRF** | VNI 50002, VLAN 2003, attached to leaf01 & leaf02 | **None** | **Critical** – VRF missing |
| **DEV_VRF** | VNI 50002, VLAN 2002, attached to leaf01 | **None** | **Critical** – VRF missing |

### 5. VXLAN Networks

| Network | Intended | Running | Drift |
|---------|----------|---------|-------|
| **PROD_NET_100** | VNI 30100, VLAN 100, VRF PROD_VRF, gateway 10.100.1.1/24 | **None** | **Critical** – network missing |
| **PROD_NET_200** | VNI 30200, VLAN 200, VRF PROD_VRF, gateway 10.200.1.1/24 | **None** | **Critical** – network missing |

---

## 🛠️ Recommended Remediation (ordered by severity)

| # | Action | Why |
|---|--------|-----|
| **1** | **Fix interface modes & VLANs** on leaf01 Ethernet1/1 & Ethernet1/2 (trunk / access, correct MTU, correct VLANs, remove unintended IPs). | Critical – wrong mode/VLAN prevents intended traffic. |
| **2** | **Create port‑channel10** on leaf01 with members Ethernet1/10 & Ethernet1/11, set trunk mode, allowed VLANs 100‑1200, add description. | Critical – missing L2 aggregation. |
| **3** | **Deploy VRFs** PROD_VRF and DEV_VRF on leaf01 & leaf02 (VNI, VLAN mapping). | Critical – VRFs are required for VXLAN isolation. |
| **4** | **Provision VXLAN networks** PROD_NET_100 and PROD_NET_200 under PROD_VRF (VNI, VLAN, gateway). | Critical – services that rely on these networks are currently unreachable. |
| **5** | **Add missing descriptions** to Loopback0 interfaces (Router ID). | Minor – improves documentation and troubleshooting. |
| **6** | **Remove extra interfaces** Ethernet1/1 & Ethernet1/2 on leaf02 (or add them to intent if they are intentional). | Minor – prevents unintended configuration drift. |
| **7** | **Re‑run drift detection** after applying the above changes to verify compliance. | Validation step. |

---

## 📋 Next Steps – What would you like to do?

1. **Apply the changes** now (I can push the configuration via NDFC if you provide the necessary API token or confirm you want me to use the existing admin credentials).
2. **Get a step‑by‑step guide** for any of the remediation items (e.g., how to create a port‑channel or VRF via NDFC GUI/CLI).
3. **Schedule a recurring drift‑check** (daily/weekly) and have the report delivered to a ticketing system or email.
4. **Export this report** as PDF/Markdown for documentation or sharing with your team.

Just let me know which option(s) you’d like to proceed with, and I’ll take care of it!

Configuration

requirements.txt

requests>=2.28.0
urllib3>=2.0.0
pyyaml>=6.0

ncp.toml

[project]
name = "intent_drift_detector"
version = "0.1.0"
description = "AI-powered intent drift detection for NDFC fabrics"

[build]
python_version = "3.11"
entry_point = "agents.main_agent:agent"

Supported NDFC APIs

Based on testing, the following NDFC APIs are used:

API Status Purpose
POST /login ✅ Authentication
GET /control/fabrics/{fabric}/inventory ✅ Switch inventory
GET /interface/detail ✅ Interface configs
GET /top-down/fabrics/{fabric}/vrfs ✅ VRF definitions
GET /top-down/fabrics/{fabric}/networks ✅ VXLAN networks
GET /interface/detail?ifType=INTERFACE_PORT_CHANNEL ✅ Port-channels
GET /control/policies/switches/{sn} ✅ Switch policies

See docs/NDFC_API_Analysis_Final.md for detailed API documentation.

Development

Adding New Comparison Logic

Edit agents/main_agent.py and extend the compare_intent_vs_running function:

# Example: Add VRF comparison
for vrf in intent_data.get("vrfs", []):
    vrf_name = vrf.get("name")
    # Compare against running_data["vrfs"]
    # Add drift entries as needed

Adding New NDFC Tools

  1. Add the function to tools/ndfc_tools.py
  2. Export it in tools/__init__.py
  3. Create a wrapper with @tool decorator in agents/main_agent.py
  4. Add to the agent's tools list

Troubleshooting

NDFC Connection Issues

  • Verify NDFC host is reachable
  • Check credentials are correct
  • Ensure SSL certificates are valid (or tool handles self-signed certs)

Empty Results

  • Confirm fabric name is correct
  • Check if switches are discovered in NDFC
  • Verify user has appropriate NDFC permissions

Validation Errors

ncp validate .

Check for: - Python syntax errors - Missing dependencies - Import issues

Screenshots

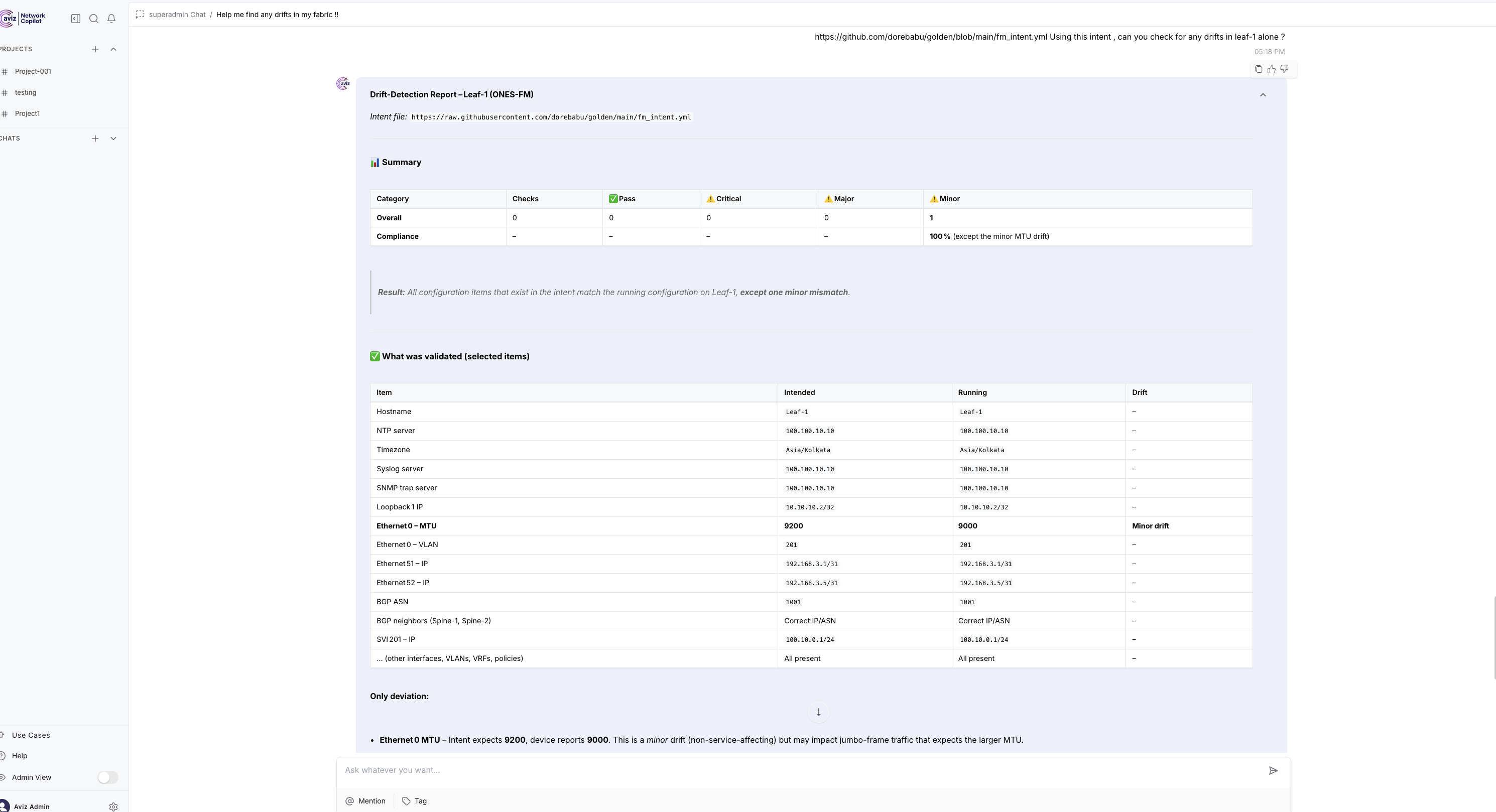

Figure 1. Intent Drift Check

Intent Drift Check

Figure 2. Sample ONES-FM Intent

Sample ONES-FM Intent
